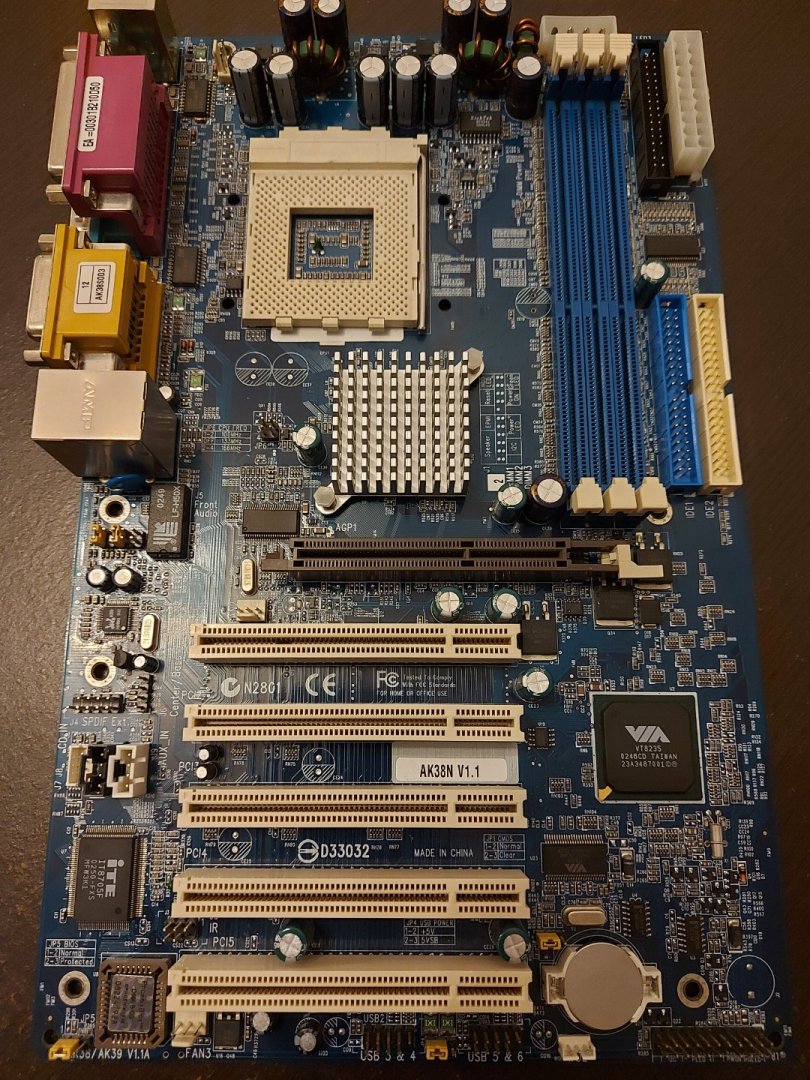

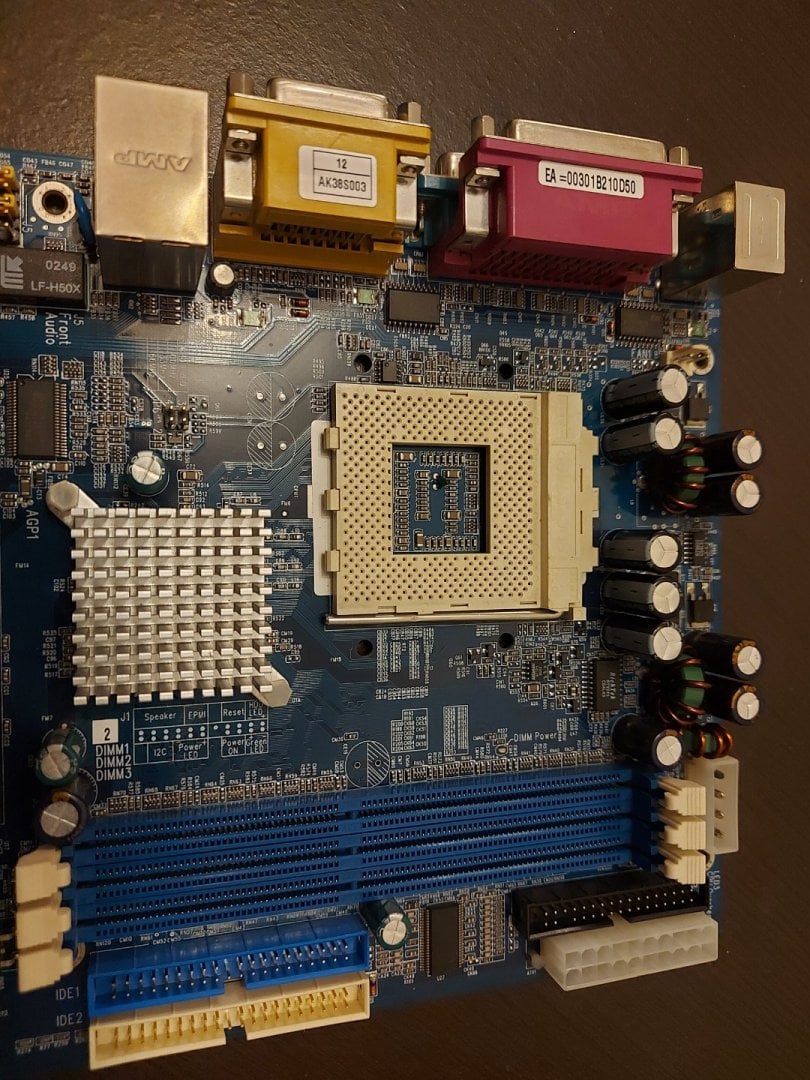

Πωλείται μητρική Shuttle AK38N V1.1 Motherboard Socket 462, πλήρως λειτουργική.

Motherboard Specs:

Chipset:
VIA KT333CF / VIA VT8235
System clock: 200/266/333 MHz
Socket 462 (Socket A) CPU Support:
AMD Athlon XP and Duron processors for socket A with 200/266/333MHz FSB
supports Thunderbird, Palomino (model 6), T-Bred (model 😎 and Barton up to 3000+
FSB infinitely adjustable: 100...166MHz (in 1 MHz-steps)
Note: If an Athlon XP processor with 166/333MHz FSB is used, for KT333CF-chipset the DDR333-memory is essential, as only synchronous operation is possible on this setting.
Burn Proof CPU protection only for AthlonXP
(CPU Burning Proof)
Expansion Slots:
1 x AGP (v3.0) Slot supports 4X and 2X mode
Important Note: AGP-Slot supports only 1,5V-mode (3,3V is not supported)
5 x 32 Bit PCI (v2.2)
Onboard IDE Controller
2-Channel Enhanced PCI IDE
up to 4 IDE devices
supports ATA133 (downward compatible)
with ATA-133-cable
Multimedia:
AC97 2.2 Sound 6-Kanal Sound
Back panel connectors: line-in, line-out, microphone, MIDI/gameport, line in/out, microphone
Bracket connector: Bass/Center, bracket included in delivery
More line-ins on the mainboard, audio line-in for CD-ROM and AUX.
Optional accessory: SPDIF-Adapter CA10
Ethernet:
10/100MBit LAN
VIA 6103 chipset
Back panel connectors:
1 x PS/2-mouse
1 x PS/2-keyboard
1 x Parallel (SSP/EPP/ECP)
2 x Serial
1 x LAN
2 x USB 2.0 (4 connectors more onboard)
Audio: line-in, line-out, microphone, MIDI/gameport
Onboard-connectors:
1 x Floppy Drive (up to 2,88 MB)
4 x USB 2.0 (two more on the back panel)
1 x Infrared (COM2 can be configurated for infrared communication, IrDA-Adapter not included in delivery)
1 x WOL (Wake on Lan)
1 x SPDIF
2 x Audio front panel connectors (microphone and line-out)
1 x Bass/Center audio line-out
2 x CDROM audio line-in
1 x AUX
3 x Fan (CPU, AGP, Case)
Memory:
3 x 184-pin for PC1600 (DDR200), PC2100 (DDR266) or PC2700 (DDR333) unbuffered DDR SDRAM memory
with 100, 133MHz or 166MHz clock frequency up to 3GB capacity
Note: KT333CF-chipset requires at 166MHz FSB synchronous memory frequency at 166MHz (DDR333) as well.
Hardware-monitoring
CPU-temperature, system voltage and fan revolution
Power Management
ACPI Version 1.0 (Advanced Configuration and Power Interface)
supports power saving mode: S1 (snoop), S3 (suspend to RAM), S4 (suspend to DISK), S5 (soft-off)
On/Off-key with two functions: suspend saving mode / soft-off
Power on after power fail
BIOS
Award V6.0PG PnP Green BIOS
stored in 2MBit Flash-memory chip
ATX-Power Supply Connector
Standard 20-Pin-ATX-power supply connector
With additional 4-pin connector for a better supply of the 12V-bar, a power supply with this connector is not essential for safe operation
Form Factor
ATX, 30,5 x 19,0 cm
