Advantech ARK3360F (ARK-3360F-D5A1E) Industrial Fanless PC

SSD SLC Industrial Spec / CF Card Bootable

Βιομηχανικού τύπου μονάδα ηλεκτρονικού υπολογιστή
Για Σκάφοι/Πλοήγηση/Controller/Τηλεφωνικά Κέντρα






https://www.advantechboards.net/advantech/ark-3360f-d5a1e


Specifications

BIOS

AMI 16 Mbit

Chipset

Intel 3.5 Gen Integrated Graphic Engine

Construction

Aluminum housing

CPU

Intel Atom N450/D510

Dimensions

(W x H x D) 264.5 mm x 69.2 mm x 137.25 mm (10.41" x 2.72" x 5.4")

EMC

CE/FCC Class A, CCC, BSMI

Front Side Bus

667 MHz

HDD

Supports drive bay space for 1 x SATA 2.5" HDD

LAN 1

10/100/1000 Mbps Ethernet controller, supports Wake On LAN

LAN 2

10/100/1000 Mbps Ethernet controller, supports Wake On LAN

LAN 3

10/100/1000 Mbps Ethernet controller, supports Wake On LAN

Max. Memory Capacity

2 GB

Max. Speed

1.66 GHz

Memory Socket

1 x 200-pin SODIMM

Memory Technology

DDR2 667 MHz

Mounting

Desk/wall-mounting

Operating Temperature

With Industrial Grade CompactFlash disk: -20 ~ 60° C (32 ~ 140°F). With 2.5-inch extended temperature hard disk 0 to 45° C (32 ~ 112° F) , with air flow

Safety Certifications

UL, CCC, BSMI

Serial Interfaces

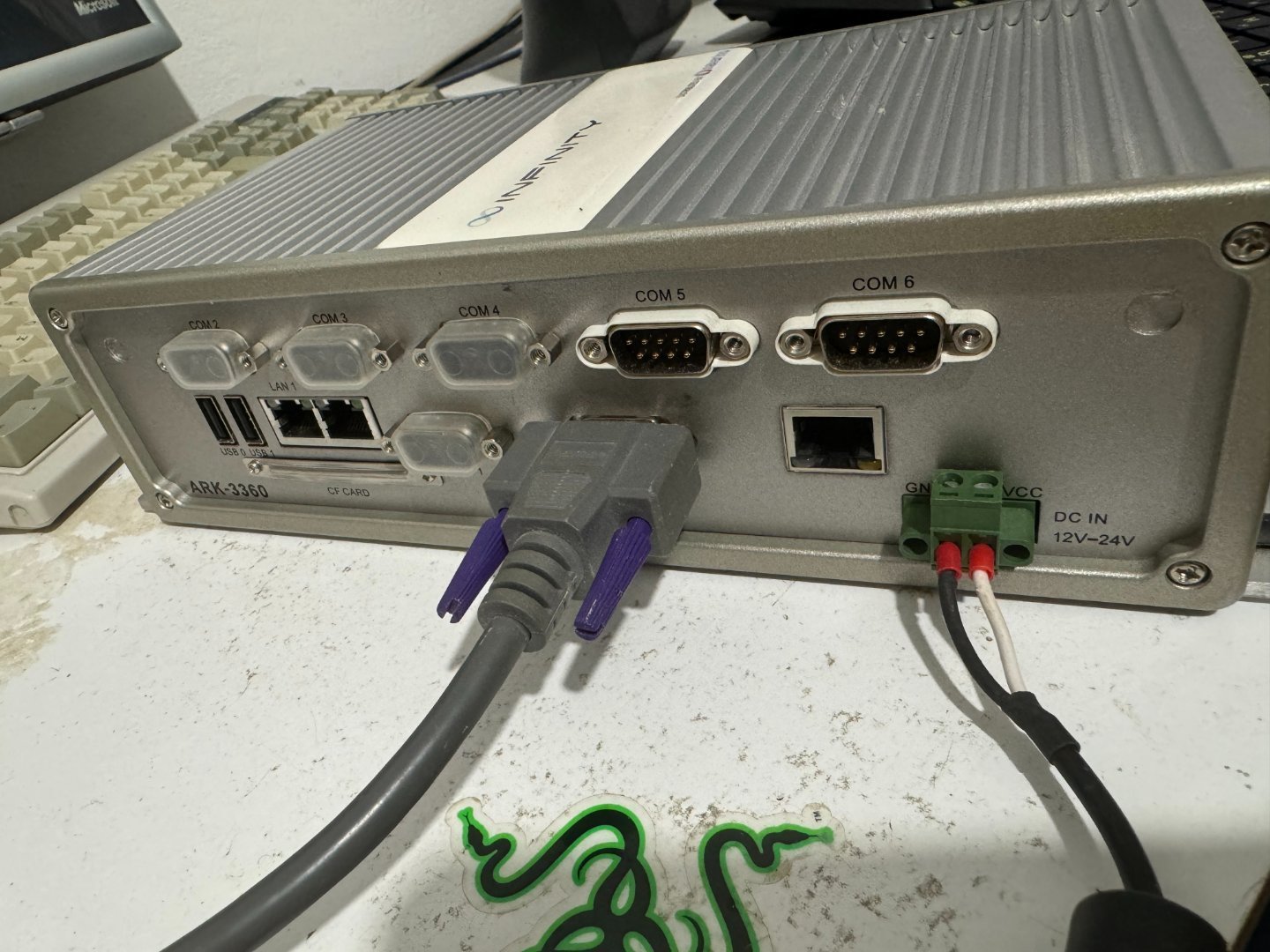

1 x RS-232, 3 x RS-232/422/485, 2 x RS-422/485 with 7.5Kv isolation protection & auto flow control

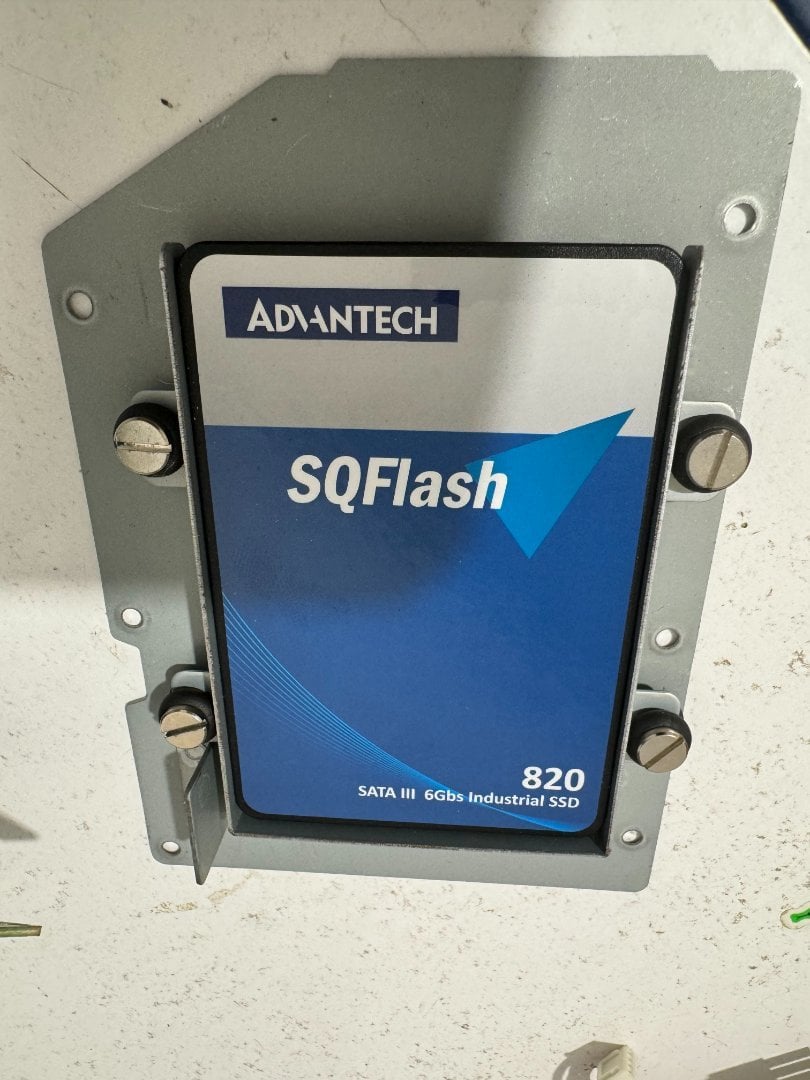

SSD

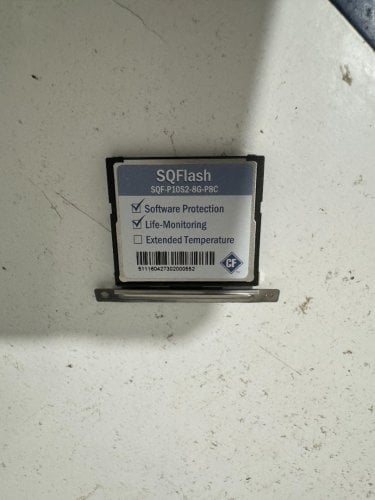

Supports CompactFlash socket for type I/II CompactFlash disk

System Chipset

Intel Pineview-M/D + ICH8-M Chipset
