Δίνεται με το Τροφοδοτικό του που δεν απεικονίζεται ενώ δεν υπάρχει το Τηλεχειριστήριο!

Features

High Definition Audio Quality

❑ High Signal-to-Noise Ratio (SNR) exceeding 100dB using high linearity, low distortion 24-bit
converters
❑ 24-bit / 96 kHz Analog-to-Digital Converter (ADC) for various analog inputs
❑ 24-bit / 96 kHz Digital-to-Analog Converter (DAC) for 6-channel analog speaker and headphone
outputs
❑ Independent 24-bit Analog-to-Digital Converters for Line and Microphone input controls to provide
recording and mixing flexibility
❑ Supports Sony/Philips Digital Interface (SPDIF) format input signal of up to 24-bit / 96 kHz quality

Professional Quality DSP Engine

❑ Creative's high performance hardware Digital Signal Processor (DSP), for precise sampling rate
conversion, CMSS, 3D audio algorithm processing, digital mixing and bass management; as well as
accurate Dolby Digital processing
❑ High speed Dolby Digital DSP for accurate processing of Dolby Digital streams
❑ Host based 32-bit floating point effects engine for professional quality real-time effects, processing,
mixing and positioning of audio streams
General Specifications A-3

EAX ADVANCED
HD™, Advanced Audio
& 3D Audio Technology
❑ Optimized user-selectable settings for two, four or six speakers
❑ Improved Creative Multi Speaker Surround™ (CMSS) technology accurately places mono or stereo
sources in a 360º audio space
❑ Realistic EAX reverb, panning and elevation effect brings life to your music and games
❑ Advanced time-scaling feature allows variable playback duration without altering pitch of original
content
❑ Powerful Audio Clean-up feature removes noise and 'clicks' from playback of vinyl disk or cassette
tape recordings

Dynamic Dolby Digital Playback

❑ “Dolby Laboratories” approved hardware Dolby Digital decoding that does not rely on the host
processor power for decoding, resulting in a consistent Dolby Digital playback that does not depend
on software or hardware DVD players
❑ Dedicated Dolby Digital (AC-3) hardware DSP decoder with support for up to 24-bit I/O data format.
Ability to decode Dolby Digital streams from optical, coaxial SPDIF input or host PC via USB
connection
❑ Built-in 24-bit DACs provide the best audio resolution for Dolby Digital playback, making it the
perfect partner for DVD applications
❑ Optimum bass management feature allows speakers of different sizes to be accommodated - be it
Creative Inspire ™ range of 5.1 channel speakers or '6-channel ready’ home A/V amplifiers
❑ Provides mixing of Dolby Digital audio with real-time game play audio effects - a feature that normal
consumer Dolby Digital A/V receivers are not capable of supporting

Advanced USB Features

❑ Optimized dynamic bandwidth allocation architecture for audio data transfer via USB bus. The
architecture provides support for simultaneous playback of 5.1 multi-channel audio together with a
compressed Dolby Digital (AC-3) stream while supporting a full duplex recording session
❑ The dynamic bandwidth allocation architecture is ideal for playing 3D games or applications with
Dolby Digital tracks that simultaneously support voice recognition for command and control
❑ MIDI I/O connection to PC via high speed USB assures reliable, immediate MIDI transfers for
professional quality MIDI recording and/or playback
❑ Works as a standalone unit or with more functionality when connected to the PC via the USB
connection

Connectivity

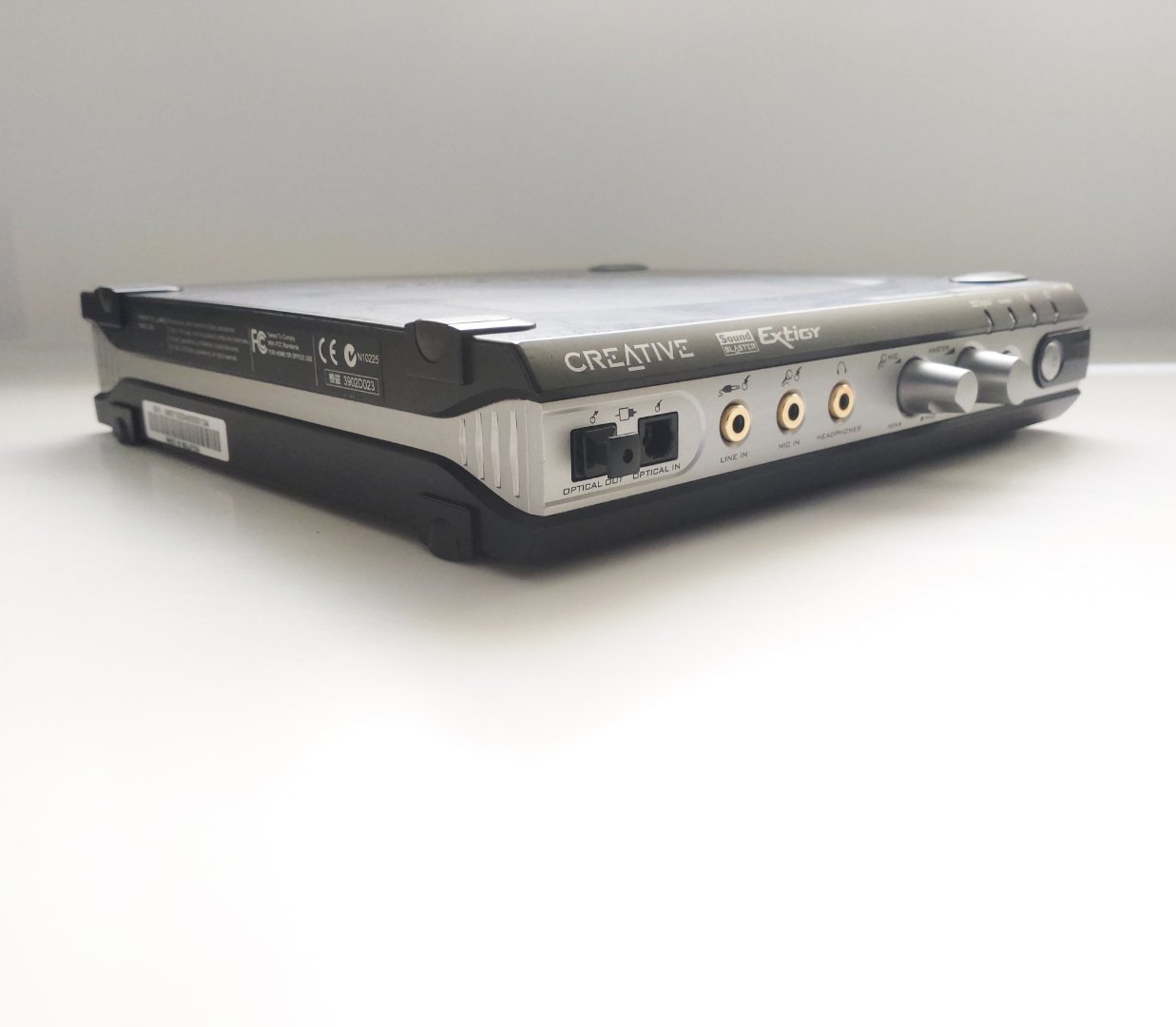

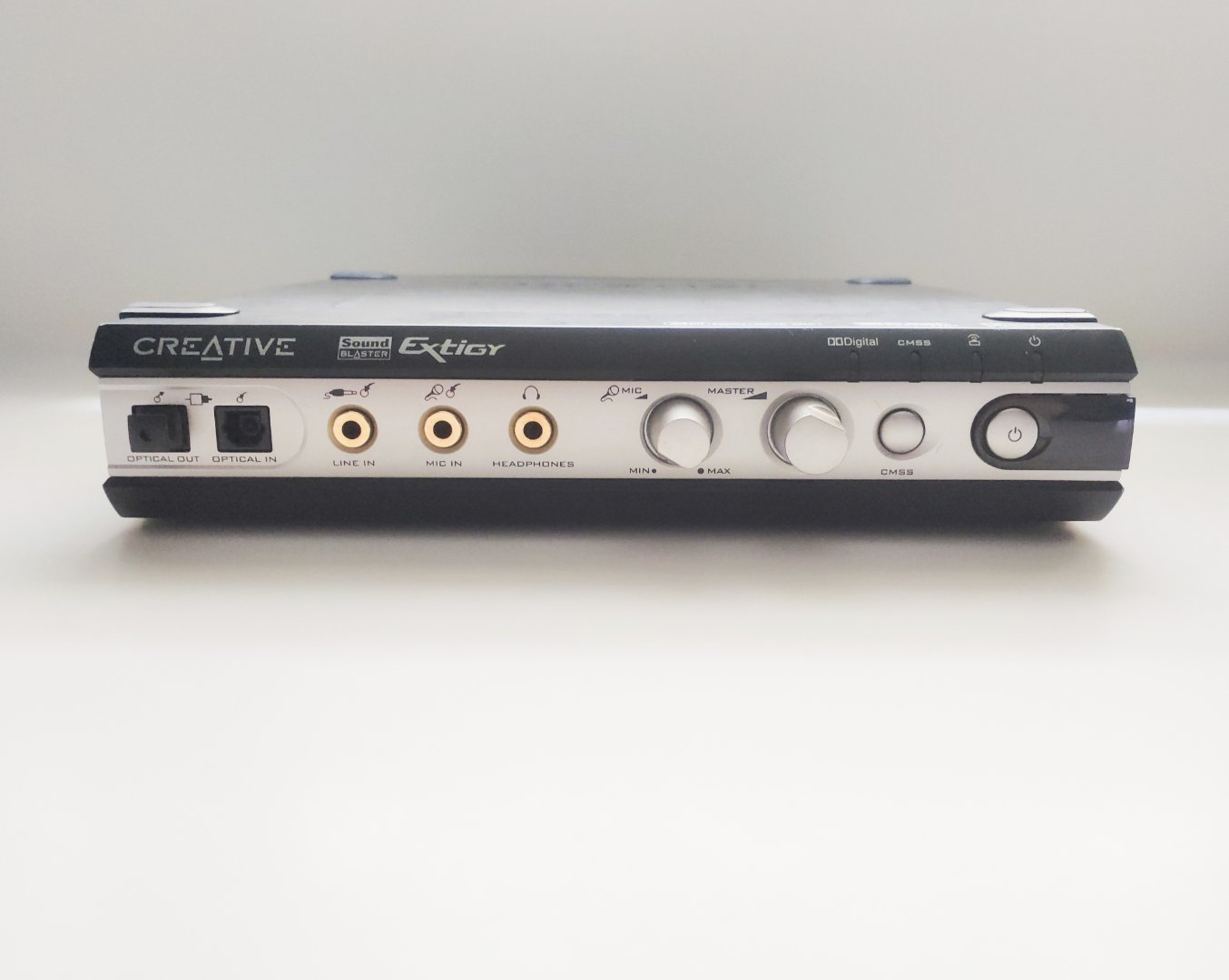

Inputs and Outputs on
Front Panel
❑ One square connector for Optical SPDIF input
❑ One square connector for Optical SPDIF output
❑ One 3.5 mm (1/8 ") jack for stereo line-level analog input
❑ One 3.5 mm (1/8 ") jack for mono analog Microphone input
❑ One 3.5 mm (1/8 ") jack for stereo analog Headphones output. (When the Headphones plug is inserted,

the autodetect feature automatically mutes the main speakers and the audio is redirected to
Headphones output)
❑ One Infrared Receiver for receiving signals from the Remote Control unit. (The optimal direct line-of-
sight transmission range is within 5 m (16 ') or 3 m (10 ') with 30° deviation from the center axis)

Control Knobs and Buttons on Front Panel

❑ One Microphone gain control knob (Min. to Max. with clockwise rotation)
❑ One Master Volume gain control knob (digital control, clockwise rotation to increase volume)
❑ One CMSS button: When enabled, stereo sources will be up-mixed to 4 or 5.1 channel output
depending on the speaker configuration. When disabled (Direct mode), audio sources will be
reproduced without any up-mixing
❑ One Power button

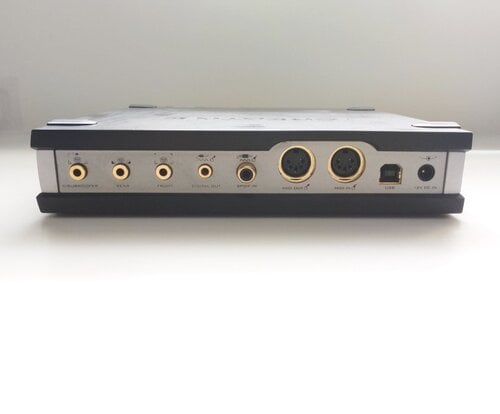

Inputs and Outputs On
Rear Panel
❑ One 3.5 mm (1/8 ") jack for stereo analog Front Left and Right Speaker output
❑ One 3.5 mm (1/8 ") jack for stereo analog Rear Left and Right Speaker output
❑ One 3.5 mm (1/8 ") jack for analog Center Speaker and Subwoofer output
❑ One 3.5 mm (1/8 ") 4-pole jack for digital output to external digital devices such as 2, 4 or 5.1
Cambridge SoundWorks or Creative Inspire range of speakers
❑ One RCA / Coaxial jack for SPDIF input
❑ One standard 5-pin DIN connector for MIDI input
❑ One standard 5-pin DIN connector for MIDI output
❑ One USB port (Type
❑ One Power Supply Input jack (12 V DC In). Connects to the supplied external AC/DC power adapter.

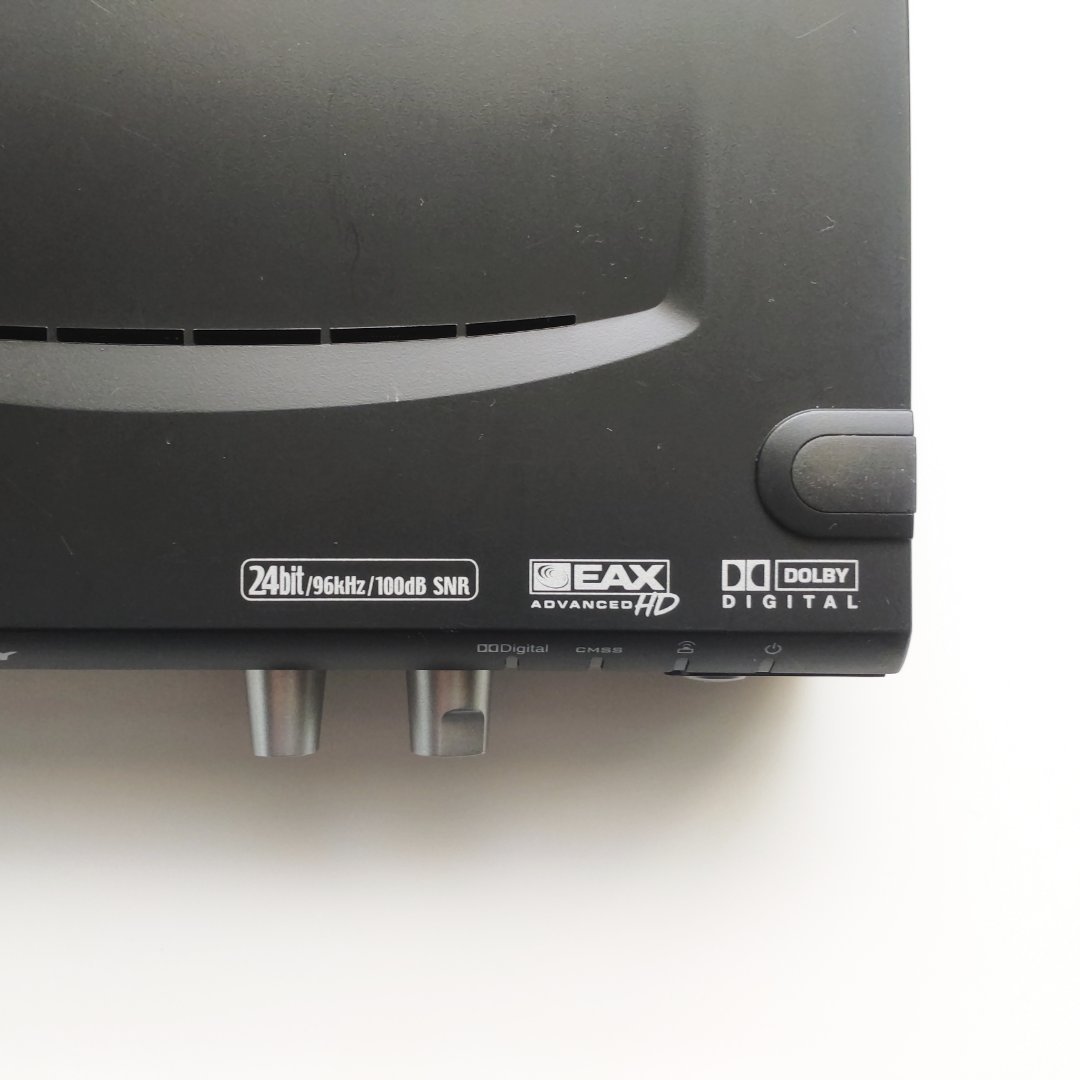

Display Indicators

❑ One green LED to indicate power status. Lights up when the unit is switched on.
❑ One red LED to indicate remote control receive status. Blinks when it receives a transmission message
from the Remote Control unit.
❑ One green LED to indicate CMSS status. Lights up when CMSS is enabled.
❑ One green LED to indicate Dolby Digital status. Lights up when the unit receives a source encoded
with Dolby Digital bitstream.

Παράκληση: Οι συναντήσεις για έλεγχο/αγορά δύναται να πραγματοποιούνται αποκλειστικά στον σταθμό ΚΑΤ του ηλεκτρικού κατά τις μεσημεριανές ώρες!
Αποστολή Πανελλαδικά: με ανάλογη χρέωση Box Now (παραλαβή από το πλησιέστερο σημείο Box Now)

Ευχαριστώ
