πωλειται σε αριστη κατασταση ο παραπανω ολωκληρωμενος ενισχυτης, με προενισχυση 11.2 καναλια. Δεκτος καθε έλεγχος. Αθηνα χερι χερι η αποστολη οπουδηποτε κατ οπιν συννενοησης.
Output Power
|
110 W per channel @ 8 Ohms, 20 Hz to 20 kHz, 0.08% THD, 2-channel driven
150 W per channel @ 6 Ohms, 1 kHz, 0.7% THD, 2-channel driven
220 W per channel maximum
|
Channels
|
9.2; 7.1.2 possible with four assignable height channels
|
Object-Based Audio Support
|
Dolby Atmos up to 7.1.2
DTS:X up to 7.1.2
|
Signal to Noise Ratio
|
102 dB
|
Video
Upscaling
|
Yes, to near-4K 60/50 Hz
|
Pass-Through
|
3D, 4K/60 Hz, 4:4:4, HDCP 2.2, HDR, and BT.2020
|
HDMI Version
|
2.0a
|
HDCP Version
|
2.2
|
Input/Output Level and Impedance
|
Composite Video: 1 Vp-p, 75 Ohms
Component Video, Y Signal: 1 Vp-p, 75 Ohms
Component Video, PB / CB and PR / CR Signals: 0.7 Vp-p, 75 Ohms
|
Frequency Response
|
Component Video: 5 Hz to 60 MHz (0, -3 dB)
|
Tuner Section
Tuner Bands
|
AM / FM
|
Reception Frequencies
|
AM: 520 to 1710 kHz
FM: 87.5 to 107.9 MHz
|
Sensitivity
|
AM, Effective: 18 μV
FM, Effective: 1.2 μV (12.8 dBf)
|
50dB Sensitivity Mono/Stereo
|
FM, Mono: 2.8 μV (20.2 dBf)
|
S/N Ratio
|
FM, Mono: 70 dB (IHF-A weighted, Direct Mode)
FM, Stereo: 67 dB (IHF-A weighted, Direct Mode)
|
Distortion
|
FM, Mono: 0.7% (1 kHz)
FM, Stereo: 1.0% (1 kHz)
|
Connectivity
Bluetooth
|
Version: 2.1 + EDR (Enhanced Data Rate)
Transmission Power: Maximum 2.5 mW (Class 2)
Maximum Communication Range: Approximately 32.8' (10 m) in line of sight
Frequency Band: 2.4 GHz
Modulation Scheme: FHSS (Frequency-Hopping Spread Spectrum)
Supported Profiles: A2DP (Advanced Audio Distribution Profile) 1.2, AVRCP (Audio Video Remote Control Profile) 1.4
Corresponding Codec: SBC, AAC
Transmission Range (A2DP): 20 Hz to 20 kHz
|
Wi-Fi
|
Radio Frequency: Dual-band (2.4 / 5 GHz)
Network Type: IEEE 802.11a/b/g/n
Security: WEP 64 bit, WEP 128 bit; WPA/WPA2-PSK (AES); WPA/WPA2-PSK (TKIP)
Number of Channels: 2.4 GHz - 1 to 11 ch; 5 GHz - 36 to 48 ch, 149 to 165 ch
|
AirPlay
|
Yes
|
Inputs
|
8 x HDMI (1 front)
2 x Optical TOSLINK
2 x Digital coaxial
2 x Component video
4 x Composite video (1 front)
7 x Stereo RCA audio (1 front, 1 phono)
1 x USB (front)
1 x 7.1-channel analog in
|
Outputs
|
2 x HDMI (1 with ARC)
1 x Composite video
1 x Component video
1 x 1/4" (6.35 mm) Headphone
2 x Subwoofer pre-out
1 x Stereo RCA Zone 2
1 x 11.2-channel analog pre-out
|

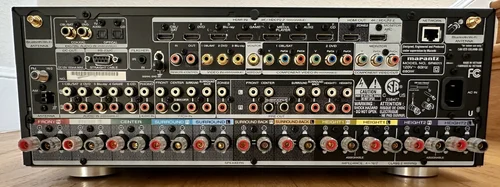

Other Ports
|
1 x FM tuner antenna
1 x AM tuner antenna
2 x Wireless antenna
1 x Ethernet
1 x IR flasher in
1 x Sound calibration microphone in
1 x 12 VDC, 150 mA out
1 x RS-232C in
1 x Signal ground
1 x AC in
|
Speaker Connectors
|
11 x Binding post pairs
|
HDMI CEC
|
Yes
|
File Support
|
WMA, MP3, WAV, MPEG-4 AAC, FLAC, ALAC, AIFF, DSD, JPEG
|
General
Power Consumption
|
Operational: 680 W
Operational, No Sound, Eco On: 50 W
Operational, No Sound, Eco Off: 80 W
Standby: 0.2 W
CEC Standby: 0.5 W
Network Standby: 2.7 W
|
Power Requirements
|
120 VAC, 60 Hz
|
Dimensions
|
17.375 x 9.125 x 15.75" (440 x 229 x 398 mm) with antennas up
17.375 x 6.375 x 15.375" (440 x 161 x 388 mm) without antennas
|
Weight
|
28 lb (12.7 kg)
|
