προβημα με arduino

[arduinowarrior]

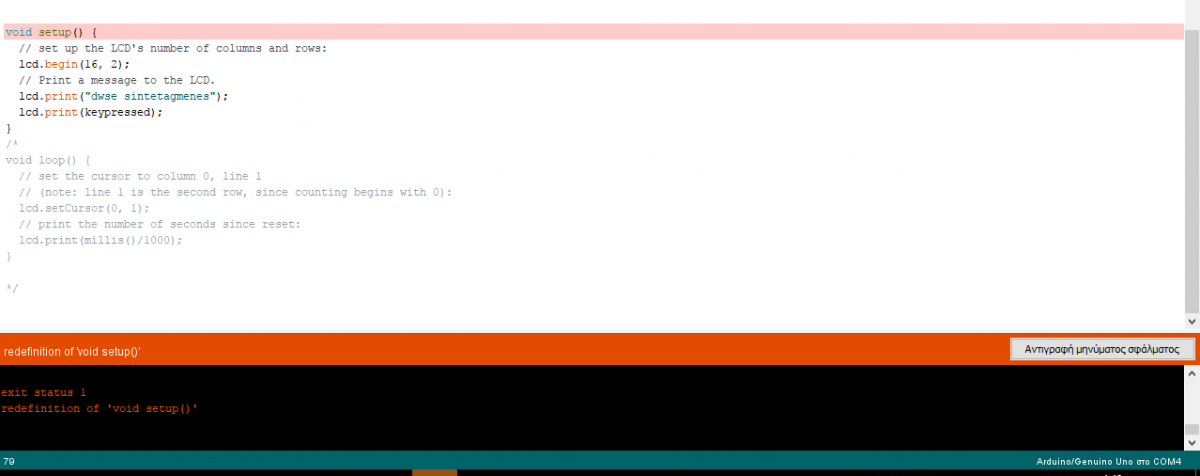

καλησπερα, εχω τον παρακατω κωδικο αλλα μου βγαζει το παρακατω σφαλμα που εχω επισειναψει σε εικονα , μηπως γνωρειζει κανεις τι λαθος υπαρχει στον κωδικα? Ευχαριστω





    #include <Keypad.h>



/*4x4 Matrix Keypad connected to Arduino

This code prints the key pressed on the keypad to the serial port*/







const byte numRows= 4; //number of rows on the keypad

const byte numCols= 4; //number of columns on the keypad



//keymap defines the key pressed according to the row and columns just as appears on the keypad

char keymap[numRows][numCols]=

{

{'1', '2', '3', 'A'},

{'4', '5', '6', 'B'},

{'7', '8', '9', 'C'},

{'*', '0', '#', 'D'}

};



//Code that shows the the keypad connections to the arduino terminals

byte rowPins[numRows] = {9,8,7,6}; //Rows 0 to 3

byte colPins[numCols]= {5,4,3,2}; //Columns 0 to 3



//initializes an instance of the Keypad class

Keypad myKeypad= Keypad(makeKeymap(keymap), rowPins, colPins, numRows, numCols);



void setup()

{

Serial.begin(9600);

}



//If key is pressed, this key is stored in 'keypressed' variable

//If key is not equal to 'NO_KEY', then this key is printed out

//if count=17, then count is reset back to 0 (this means no key is pressed during the whole keypad scan process

void loop()

{

char keypressed = myKeypad.getKey();

if (keypressed != NO_KEY)

{

Serial.print(keypressed);

}

}

/* The circuit:

 * LCD RS pin to digital pin 12

 * LCD Enable pin to digital pin 11

 * LCD D4 pin to digital pin 5

 * LCD D5 pin to digital pin 4

 * LCD D6 pin to digital pin 3

 * LCD D7 pin to digital pin 2

 * LCD R/W pin to ground

 * 10K potentiometer:

 * ends to +5V and ground

 * wiper to LCD VO pin (pin 3)

 */



// include the library code:

#include <LiquidCrystal.h>



// initialize the library with the numbers of the interface pins

LiquidCrystal lcd(A0, A1 ,A2, A3, A4, A5);





void setup() {

  // set up the LCD's number of columns and rows:

  lcd.begin(16, 2);

  // Print a message to the LCD.

  lcd.print("dwse sintetagmenes");

  lcd.print(keypressed);

}

/*

void loop() {

  // set the cursor to column 0, line 1

  // (note: line 1 is the second row, since counting begins with 0):

  lcd.setCursor(0, 1);

  // print the number of seconds since reset:

  lcd.print(millis()/1000);

}



*/





καλησπερα, εχω τον παρακατω κωδικο αλλα μου βγαζει το παρακατω σφαλμα που εχω επισειναψει σε εικονα , μηπως γνωρειζει κανεις τι λαθος υπαρχει στον κωδικα? Ευχαριστω





    #include <Keypad.h>



/*4x4 Matrix Keypad connected to Arduino

This code prints the key pressed on the keypad to the serial port*/







const byte numRows= 4; //number of rows on the keypad

const byte numCols= 4; //number of columns on the keypad



//keymap defines the key pressed according to the row and columns just as appears on the keypad

char keymap[numRows][numCols]=

{

{'1', '2', '3', 'A'},

{'4', '5', '6', 'B'},

{'7', '8', '9', 'C'},

{'*', '0', '#', 'D'}

};



//Code that shows the the keypad connections to the arduino terminals

byte rowPins[numRows] = {9,8,7,6}; //Rows 0 to 3

byte colPins[numCols]= {5,4,3,2}; //Columns 0 to 3



//initializes an instance of the Keypad class

Keypad myKeypad= Keypad(makeKeymap(keymap), rowPins, colPins, numRows, numCols);



void setup()

{

Serial.begin(9600);

}



//If key is pressed, this key is stored in 'keypressed' variable

//If key is not equal to 'NO_KEY', then this key is printed out

//if count=17, then count is reset back to 0 (this means no key is pressed during the whole keypad scan process

void loop()

{

char keypressed = myKeypad.getKey();

if (keypressed != NO_KEY)

{

Serial.print(keypressed);

}

}

/* The circuit:

 * LCD RS pin to digital pin 12

 * LCD Enable pin to digital pin 11

 * LCD D4 pin to digital pin 5

 * LCD D5 pin to digital pin 4

 * LCD D6 pin to digital pin 3

 * LCD D7 pin to digital pin 2

 * LCD R/W pin to ground

 * 10K potentiometer:

 * ends to +5V and ground

 * wiper to LCD VO pin (pin 3)

 */



// include the library code:

#include <LiquidCrystal.h>



// initialize the library with the numbers of the interface pins

LiquidCrystal lcd(A0, A1 ,A2, A3, A4, A5);





void setup() {

  // set up the LCD's number of columns and rows:

  lcd.begin(16, 2);

  // Print a message to the LCD.

  lcd.print("dwse sintetagmenes");

  lcd.print(keypressed);

}

/*

void loop() {

  // set the cursor to column 0, line 1

  // (note: line 1 is the second row, since counting begins with 0):

  lcd.setCursor(0, 1);

  // print the number of seconds since reset:

  lcd.print(millis()/1000);

}



*/



καλησπερα, εχω τον παρακατω κωδικο αλλα μου βγαζει το παρακατω σφαλμα που εχω επισειναψει σε εικονα , μηπως γνωρειζει κανεις τι λαθος υπαρχει στον κωδικα? Ευχαριστω





    #include <Keypad.h>



/*4x4 Matrix Keypad connected to Arduino

This code prints the key pressed on the keypad to the serial port*/







const byte numRows= 4; //number of rows on the keypad

const byte numCols= 4; //number of columns on the keypad



//keymap defines the key pressed according to the row and columns just as appears on the keypad

char keymap[numRows][numCols]=

{

{'1', '2', '3', 'A'},

{'4', '5', '6', 'B'},

{'7', '8', '9', 'C'},

{'*', '0', '#', 'D'}

};



//Code that shows the the keypad connections to the arduino terminals

byte rowPins[numRows] = {9,8,7,6}; //Rows 0 to 3

byte colPins[numCols]= {5,4,3,2}; //Columns 0 to 3



//initializes an instance of the Keypad class

Keypad myKeypad= Keypad(makeKeymap(keymap), rowPins, colPins, numRows, numCols);



void setup()

{

Serial.begin(9600);

}



//If key is pressed, this key is stored in 'keypressed' variable

//If key is not equal to 'NO_KEY', then this key is printed out

//if count=17, then count is reset back to 0 (this means no key is pressed during the whole keypad scan process

void loop()

{

char keypressed = myKeypad.getKey();

if (keypressed != NO_KEY)

{

Serial.print(keypressed);

}

}

/* The circuit:

 * LCD RS pin to digital pin 12

 * LCD Enable pin to digital pin 11

 * LCD D4 pin to digital pin 5

 * LCD D5 pin to digital pin 4

 * LCD D6 pin to digital pin 3

 * LCD D7 pin to digital pin 2

 * LCD R/W pin to ground

 * 10K potentiometer:

 * ends to +5V and ground

 * wiper to LCD VO pin (pin 3)

 */



// include the library code:

#include <LiquidCrystal.h>



// initialize the library with the numbers of the interface pins

LiquidCrystal lcd(A0, A1 ,A2, A3, A4, A5);





void setup() {

  // set up the LCD's number of columns and rows:

  lcd.begin(16, 2);

  // Print a message to the LCD.

  lcd.print("dwse sintetagmenes");

  lcd.print(keypressed);

}

/*

void loop() {

  // set the cursor to column 0, line 1

  // (note: line 1 is the second row, since counting begins with 0):

  lcd.setCursor(0, 1);

  // print the number of seconds since reset:

  lcd.print(millis()/1000);

}



*/



[vste]

Λογικα λειπει η library Keypad.h.



Πανε μια στο menoy σχεδιο -> συμπεριληψη βιβλιοθηκης και εγκατεστησε την.

[arduinowarrior]

το εχω ήδη κανει αυτο.....

[vste]

Για δες λιγο εδω:

http://forum.arduino.cc/index.php?topic=392219.0



Λογικα το ενα απο τα 2 void setup που εχεις ειναι λαθος και δεν θα επρεπε να υπαρχει.
