AM4 - Ryzen - CPU + RAM Overclocking Thread

Προτεινόμενες αναρτήσεις

Να ειχα αδελφη να την εκανα σκλαβα σου Spartan!



On another note, για τις CMK μου v5,39 με Typhoon δε μου αναφέρει αν ειναι AFR ή MFR λεει απλα Hynix



Οποτε να υποθέσω πως ειναι MFR? Στο Net αναφερουν και AFR και MFR



Screenshot παρακαλώ ;)

Κοινοποιήστε αυτήν την ανάρτηση


Σύνδεσμος στην ανάρτηση
Κοινοποίηση σε άλλες σελίδες

Screenshot παρακαλώ ;)

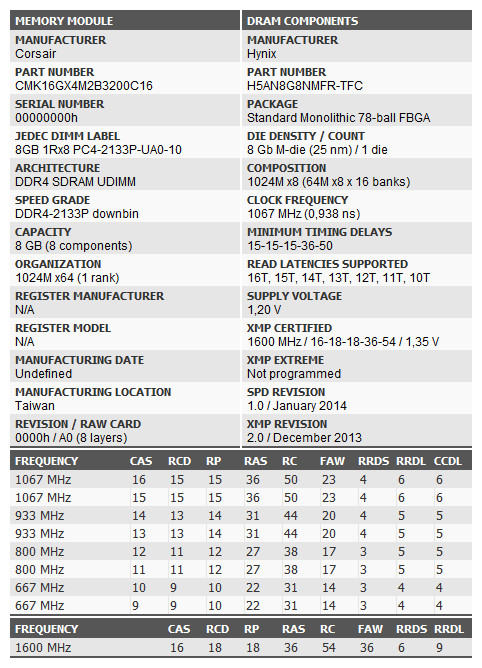

MFR... στο part number... γιατι για να το δω, επρεπει να κανω 2 post στο insomnia και ενα screenshot :/


  • Like 1

Κοινοποιήστε αυτήν την ανάρτηση


Σύνδεσμος στην ανάρτηση
Κοινοποίηση σε άλλες σελίδες

MFR... στο part number... γιατι για να το δω, επρεπει να κανω 2 post στο insomnia και ενα screenshot :/



Για MFR:






1.025 SOC

60 Ohms ProcODT

DRAM Voltage 1.365V



Αν δεν φτάνεις 3200 κατέβασε μέχρι να κάνει boot, πολύ πιθανό να τρώς μπουκάλι στο boot voltage. Μακάρι να το φτιάξουν αυτό, στην Crosshair VI Hero έχει ξεχωριστό voltage για boot.

Κοινοποιήστε αυτήν την ανάρτηση


Σύνδεσμος στην ανάρτηση
Κοινοποίηση σε άλλες σελίδες



MFR... στο part number... γιατι για να το δω, επρεπει να κανω 2 post στο insomnia και ενα screenshot :/

Μα για αυτό στο ζήτησα ;) Όλα καλά.

Για MFR:






1.025 SOC

60 Ohms ProcODT

DRAM Voltage 1.365V



Αν δεν φτάνεις 3200 κατέβασε μέχρι να κάνει boot, πολύ πιθανό να τρώς μπουκάλι στο boot voltage. Μακάρι να το φτιάξουν αυτό, στην Crosshair VI Hero έχει ξεχωριστό voltage για boot.

Το eventually λες; Είναι για Extreme pc, να μπορέσει η μνήμη να περάσει το training και μετά παίζει με χαμηλά ρεύματα.

Εγώ θα δοκιμαζα με ένα 35 στο TRas μήπως και αλλά όταν είναι όλα πειραγμενα δύσκολα τα πράγματα.

Κοινοποιήστε αυτήν την ανάρτηση


Σύνδεσμος στην ανάρτηση
Κοινοποίηση σε άλλες σελίδες

Έχω ένα θέμα δεν μπορώ το σύστημα να το κάνω σταθερό πάνω από 4. Όταν το η τάση είναι 4.25 και lvl3 στο Cb15 έχω error (σε παράθυρο) . Άμα ανεβάσω λίγο την τάση έχω BSOD. Δεν είναι λίγο περίεργο αυτό? Δεν θα έπρεπε με λίγο ρεύμα να μην έχω error.?



Έχεις βάλει maximum CPU current και extreme power phase? Soc τι δίνεις; Όλα αυτά είναι σημαντικά στα 4.0+ GHz.



Edit: Όλες οι ρυθμίσεις που έχω για 3.8 OC:
